Medical Cuffed Endotracheal Tube with High Volume Low Pressure Cuff and Murphy Eye for Oral/Nasal Use ISO/CE Certified

Medical Cuffed Endotracheal Tube with High Volume Low Pressure Cuff and Murphy Eye for Oral/Nasal Use ISO/CE Certified

Marka Adı: AILE
Model Numarası: 2.5mm-10mm
Adedi: 100 adet
fiyat: pazarlık edilebilir
Ödeme Şartları: L/C, T/T
Tedarik Yeteneği: 300000unit / ay
Ayrıntılı Bilgiler
Menşe yeri:
Çin
Sertifika:
CE/ISO
İsim:
Standart Endotrakeal Tüp Kaflı
Malzeme:
PVC
Parça:
Röntgen çizgisi, balonlu Murphy gözleri
Tip:
Tıbbi sınıf
Boyut:
2.5mm-10mm
Kullanmak:
Endotrakeal Tüp
Ambalaj bilgileri:
Kağıt plastik torba ambalaj, sterilizasyon, küçük ambalaj, 100 birim / iç kutu, 200 ünite / karton
Örnek:
Ücretsiz Örnek
Vurgula:
murphy gözler nazal endotrakeal entübasyon, 5,5 mm balonlu nazal endotrakeal entübasyon, 5,5 mm balo
Yetenek temini:
300000unit / ay
Vurgulamak:

High Volume Low Pressure Cuff Endotracheal Tube

,

Murphy Eye ET Tube

,

ISO/CE Certified Tracheal Tube

Ürün Açıklaması

Product Description

Overview

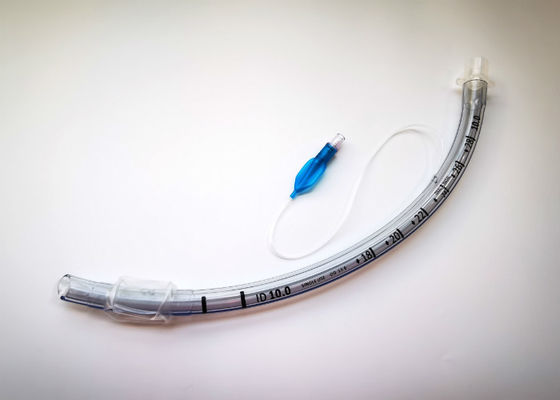

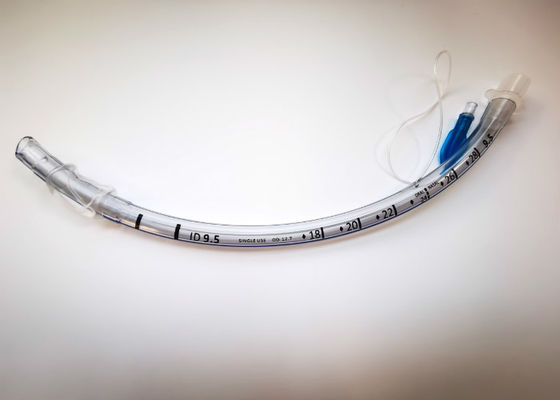

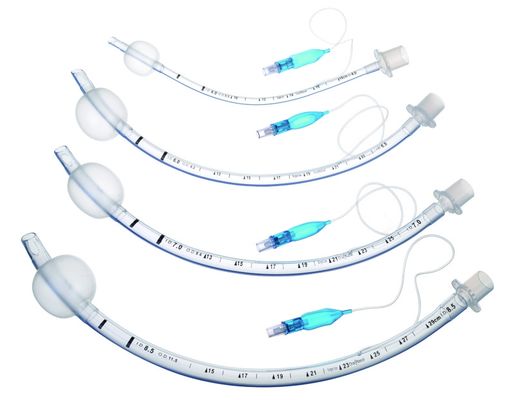

The Medical Cuffed Endotracheal Tube is a high-performance clinical consumable designed for managing patients' airways during anesthesia, intensive care (ICU), and emergency procedures. Manufactured from premium medical-grade PVC, the tube features high transparency and thermosensitivity, allowing it to conform to the patient's airway anatomy after insertion, thereby minimizing mucosal trauma.

Equipped with a High Volume Low Pressure (HVLP) cuff and a distinct blue pilot balloon, this ET tube ensures an efficient seal at a low pressure, significantly reducing the risk of tracheal wall necrosis during long-term ventilation. A full-length radiopaque X-ray line is integrated for precise positioning under diagnostic imaging.

Intended Applications

  1. Mechanical Ventilation: Establishing a secure airway for patients requiring respiratory support.

  2. Airway Protection: Preventing aspiration of secretions or gastric contents into the lungs via a secure cuff seal.

  3. Anesthesia Delivery: Maintaining airway patency and delivering anesthetic gases during surgery.

  4. Oral & Nasal Intubation: Versatile design suitable for both oral and nasal routes as per clinical requirements.

Medical Cuffed Endotracheal Tube with High Volume Low Pressure Cuff and Murphy Eye for Oral/Nasal Use ISO/CE Certified 0Medical Cuffed Endotracheal Tube with High Volume Low Pressure Cuff and Murphy Eye for Oral/Nasal Use ISO/CE Certified 1Medical Cuffed Endotracheal Tube with High Volume Low Pressure Cuff and Murphy Eye for Oral/Nasal Use ISO/CE Certified 2

Technical Specifications

ID (Inner Dia.) OD (Outer Dia.) Length Box Quantity Features
2.5mm - 4.5mm 3.5mm - 6.2mm 150mm - 225mm 25 pcs/box Pediatric / Small size
5.0mm - 7.0mm 6.9mm - 9.6mm 245mm - 305mm 25 pcs/box Medium / General use
7.5mm - 10.0mm 10.2mm - 13.6mm 315mm - 325mm 25 pcs/box Adult / Large volume
Material Medical Grade PVC Sterilization EO Gas Tip-to-Tip X-ray

Key Advantages

  1. HVLP Cuff Technology: The High Volume Low Pressure cuff provides an effective seal while distributing pressure evenly, protecting the delicate tracheal lining.

  2. Integrated Murphy Eye: This additional safety feature ensures gas flow remains uninterrupted even if the primary distal tip becomes occluded.

  3. Atraumatic Bevelled Tip: The smooth, carefully moulded hooded tip reduces resistance during intubation, enhancing patient comfort and safety.

  4. Standardized Connectors: Features a pre-mounted 15mm standard connector and clear intubation depth marks for quick and accurate setup.

  5. Quality Assurance: Fully compliant with ISO and CE standards. Every unit is EO sterilized and individually packaged to maintain medical sterility.

Frequently Asked Questions (FAQ)

  • Q: Is this ET tube suitable for both oral and nasal intubation?

    • A: Yes, it is designed for both oral and nasal routes, providing flexibility for various surgical and emergency scenarios.

  • Q: Does the tube have an X-ray detectable line?

    • A: Yes, it features a Tip-to-Tip X-ray line for full-length visibility and safe positioning control.

  • Q: What is the packaging standard for international shipping?

    • A: The tubes are individually sterile-packed, with 25 pieces per box, ensuring they are ready for global distribution and B2B procurement via Aileindus.
